Variable Ac/Dc Power Source

Variable Ac/Dc Power Source
Variable Ac/Dc Power Source
Product Code : RMG-VADVS-2009
Brand Name : RMG
Product Description

Our organization falls under the category of a renowned entity, engrossed in manufacturing, exporting and supplying an extensive assortment of Variable Dc Power Source. This electrical device is that is used to supply power to electrical load. Also, it controls the output voltage or current to a desired level. Offered electrical device is manufactured with high precision by making use of excellent quality raw material with the help of contemporary technology. Also, this Variable Dc Power Source is provided with a miniature circuit board and 10 amp fuse.

Features:

  • Consists of two separate unregulated adjustable AC and DC voltage Sources

  • Could be used as independent variable source for AC and DC voltage source

  • Short circuit protection through MCB and 10 A fuses.

  • Ruggedly built instrument that can withstand misuse and overloading to a considerable extent

  • Long term reliability

  • Fool-proof design and User friendly controls

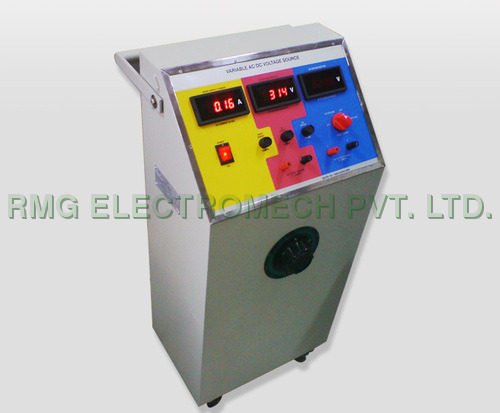

VARIABLE AC-DC VOLTAGE SOURCE, MODEL: RMG-VADVS-2009:

Description:

230 V AC operated Variable AC/DC Voltage Source consists of two separate unregulated adjustable AC and DC voltage Sources.

The Output AC Voltage can be adjusted from 0 V to 300 V and DC voltage can be adjusted from 0 V to 300 V while selected through the selector switch. There are three numbers of 3 digit Digital Panel Meters on the front panel of the instrument. First one is an AC current meter which indicates the AC mains current. The second one is a DC Voltmeter which indicates the Output DC Voltage .The third one is an AC voltmeter which indicates the output AC Voltage. Below that a rotary switch is provided to select the AC or DC voltage mode making the instrument useable as independent variable source for any of the above three entities.

The AC and DC voltage source has a capacity of 3A max, at the output. For short circuit protection an MCB is provided together with 10 A fuse. A ruggedly built instrument that can withstand misuse and overloading to a considerable extent in a typical workshop environment.
