POSITION TRANSMITTER:2-WIRE-NON CONTACT-INDUCTIVE

POSITION TRANSMITTER:2-WIRE-NON CONTACT-INDUCTIVE
POSITION TRANSMITTER:2-WIRE-NON CONTACT-INDUCTIVE
Product Code : Model : RMG-UPT-0501
Product Description

DESCRIPTION

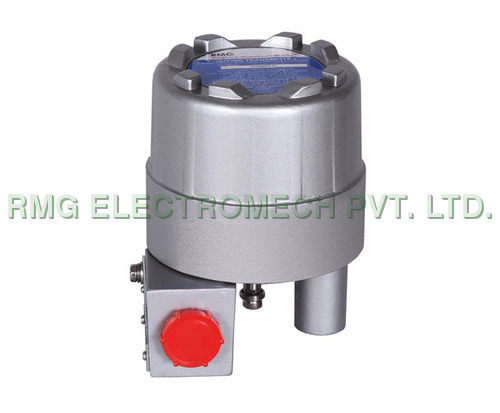

RMG-UPT-0501 is a 2 wire Position Transmitter, widely used to transmit the position of a Control Valve in a variety of process control applications. The Contactless Inductive Position Transmitter is a 24V DC operated 2Wire System, which accepts angular movements ranging from 0-15to 0-90 and converts into a 4.00 to 20.00mA signal when suitable back lever and linkages are used.


SALIENT FEATURES

  • Non-contact, Inductive type
  • Accepts a wide supply voltage Range
  • Wide operating temperature range
  • Minimal effect of ambient temperature variance on accuracy
  • Encapsulated electronics- to protect from moisture, vibration  and tampering of the circuitry
  • Compact in size as compared to other Position Transmitters available in the market
  • Has two additional trimpots for the adjustment of "MID LOW" AND "MID HIGH" Positions.
  • High accuracy with minimal Linearity and Hysteresis errors
  • Reverse Polarity protected
  • High Isolation and Dielectric strength
  • Suitable for use in very low stroke as well as for very high stroke applications
  • Die-cast enclosure capable of enduring high hydro static- pressure and with high ingress protection. Complies with IP 67 requirements as per IS/IEC 60947-1: 2004
