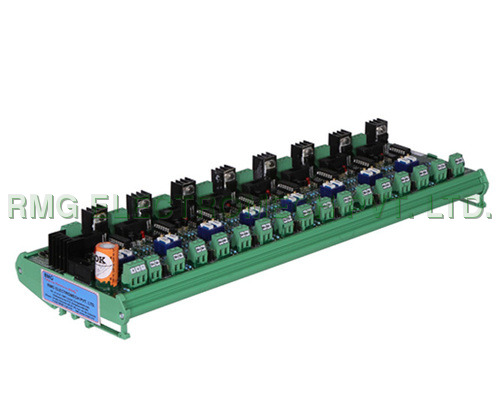

ANALOG OUTPUT REDUNDANT, MODEL: RMG – AOR - 2010

ANALOG OUTPUT REDUNDANT, MODEL: RMG – AOR - 2010
ANALOG OUTPUT REDUNDANT, MODEL: RMG – AOR - 2010
Product Code : 34
Product Description

DESCRIPTION


The ANALOG OUTPUT REDUNDANT, RMG-AOR-MC-2010 is used in Control Panels as Redundancy Card for two analog inputs from analog cards.

The unit has 8 channels and each channel receives 2 inputs. When both the received  inputs are within the specified band, AOR passes the higher value signal  as output  provided the selector switch  is set at  HIGH MODE . Similarly Lower value/ Average value is passed on when the selection is LOW MODE   or AVERAGE MODE

If either or both  the inputs go out of the specified range, then  the AOR allows the pre-determined high value  (20mA) to pass to the remote termination unit.

The AOR module works from an auxiliary supply of 24 VDC. ANALOG OUTPUT REDUNDANT (AOR) is designed to operate on  an input voltage of 24 V dc ±8%.



SALIENT FEATURES

  • Smooth Channel to Channel Transition through Inbuilt Hysteresis at Higher and Lower Limits, for Shut Down and Re-Activation.
  • Fool-Proof Design
  • User Friendly Controls.
  • Robust Construction
  • Good Dielectric Strength
  • Rugged Engineering Design and Packaging.
  • Competitive Pricing
